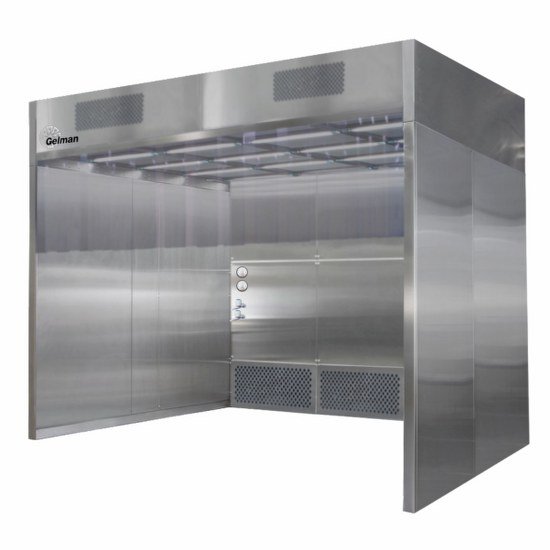

PharmaCare Downflow Containment Powder Handling Booths For Pharmaceutical & Biotechnology Industries

unique primary containment BioHEPA filtration system for maximum personnel, product & environment protection
negative pressure double-wall housings for containment
all stainless steel work zone construction with radiused corners
ISO Class 5 (Class 100) air cleanliness work zone for absolute product protection
Class 1000, Class 10 000 & Class 100 000 air cleanliness available
cost-effective & versatile alternatives to the construction of dedicated rooms
flexibility to handle large containers and process equipment
may be placed singly or in multiples to create downflow containment rows
ZERO-LEAK airflow system for enhanced safety

Gelman PharmaCare Downflow Containment Powder Handling Booths with its Bag-In / Bag-Out (BIBO) primary containment BioHEPA filtration system meet the needs of pharmaceutical and biotechnology industries in applications involving the handling of powder, drugs and chemicals that require both containment and aseptic manipulation.
The Gelman PharmaCare Downflow Containment Powder Handling Booths provide the highest levels of operator protection from potentially harmful airborne contaminants generated during manual powder handling operations such as manufacturing, tabletting, filling, grinding, sampling, charging, dispensing etc.

The Gelman PharmaCare Downflow Containment Powder Handling Booths maintain a continuous inward airflow of ambient air into a full-width lower section of the work zone.
An effective air barrier between the operator and the work zone, maintained by the inward flow of air provides personnel and environment protection.
The barrier air blends with the contaminated work zone air below the work surface and passes through a 3-stage prefiltration system comprising of multi-pleated panel filters, high dust loading extended surface Bag filters and Bag-In / Bag-Out (BIBO) primary containment BioHEPA filters.
The prefiltered air is partially recirculated back to the work area through the supply HEPA filters on top of the work zone to create an ultra-clean work environment.
GELMAN ZERO-LEAK airflow system ensures that all positive pressure zones are surrounded by negative pressure zones to contain potentially-hazardous aerosols.
