OTS Series Class 100 Horizontal Laminar Flow Operating Theatre Systems

cost-effective and versatile alternatives to the construction of dedicated theatres
provide ultra-clean air with an air change rate of approximately 500 per hour compared with no more than 20 in conventional theatres
modular design and construction which can be installed, commissioned and tested in a new or existing operating theatre within days
enclosures may be easily re-oriented or relocated to other theatres

Critical surgical procedures, such as orthopaedic cases involving the implantation of prosthetic devices, demand particular attention to measures which reduce the risk of post-operative infection.
Laminar flow ultra-clean air systems can be a significant factor in reducing infection levels in such cases.

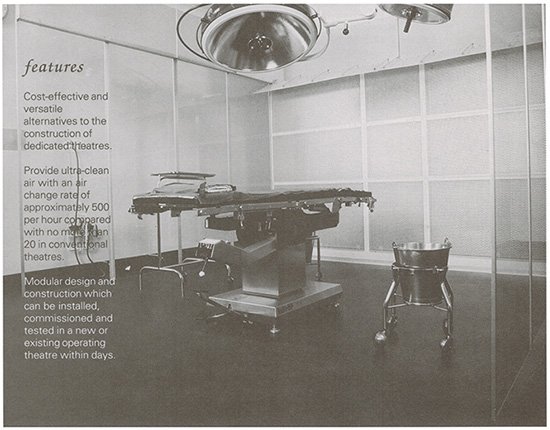

Gelman OTS Series horizontal laminar flow operating theatre systems control contamination by means of a constant flow of ultra-clean air through a modular enclosure placed around the theatre table.
Each system is composed of laminar flow modules which are self-contained filter/fan units that recirculate air within the theatre and are independent of the theatre air supply system.
When operated at the recommended airflow velocity of 0.4 m/s +20%, the Gelman OTS Series theatre systems produce a horizontal flow of ultra-clean air which exceeds the cleanliness level of Class 100 with an air change rate of approximately 500 per hour.
