Cleanroom Class 100 Vertical Laminar Flow Enclosures For Pharmaceutical Industries

cost-effective and versatile alternatives to the construction of dedicated rooms
microprocessor-controlled diagnostic system with digital display & audible alarm
provide Class 100 air cleanliness for any production area
may be placed singly or in multiples to create vertical laminar flow rooms or enclosures
may be easily and quickly assembled on site without the need for modifications to building construction
Class 10 000 & Class 100 000 air cleanliness available

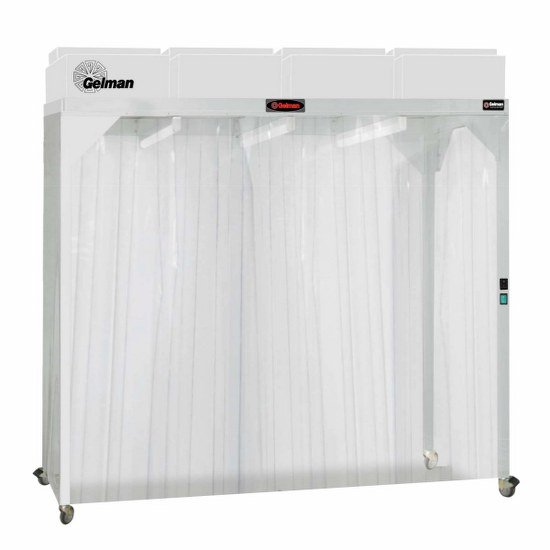

Gelman DFV Series Vertical Laminar Flow Enclosures have been developed to provide an economical and effective means of achieving a Class 100 air cleanliness level in a wide range of industrial and laboratory situations.
Typical applications include the sterile manufacture and packaging of pharmaceuticals, cultured food products and beverage; the washing, drying, filling, sealing and packaging of intravenous fluid containers, syringes, needles, ampoules and vials. In the electronics industry, DFV enclosures enable critical components to be assembled in a contamination-free environment.

Gelman DFV enclosures provide a vertical downward laminar airflow free from airborne contamination.
Motor blowers draw in ambient air through prefilters which remove all particulates 5 micron and larger. The prefiltered air is introduced to the laminar flow enclosure via final HEPA filters. The average air flow velocity within the enclosure is maintained at 0.45 m/s with uniformity of ±20%.
